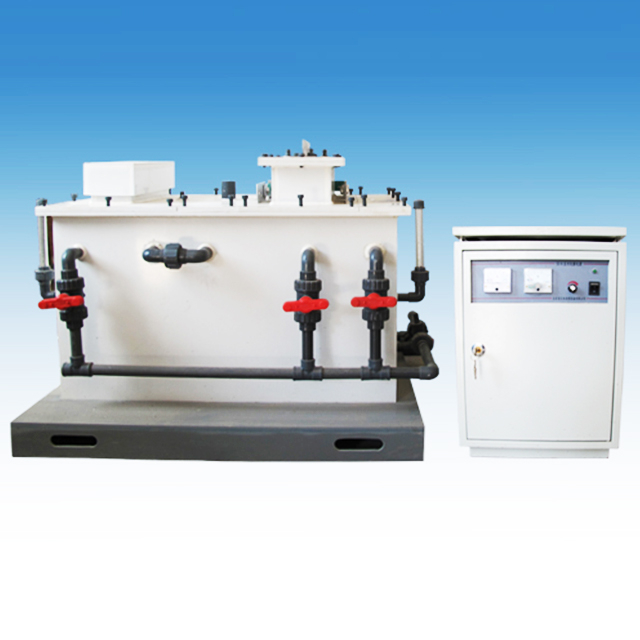

Electrolytic Chlorine Dioxide Generator

Current efficiency, %≥80
DC power consumption, kW·h/kg<7.0
AC power consumption, kW·h/kg<12.0
Salt consumption, kg/kg<2.5
Ratio of chlorine dioxide to effective chlorine concentration, %≥10
Noise, dB(A)≤60
Failure time of anode strengthening test, h>60
Chlorine concentration in the environment, mg/m<1.0

Availability:



Inquire

Product Description

The electrolytic chlorine dioxide synergistic disinfectant generator is an electrolytic device that uses electrodes and electrolytic diaphragms to electrolyze saturated brine to produce a highly efficient mixed disinfectant gas containing ClO2, Cl2, O3, H2O2 and other components, which is fully mixed with the water to be treated to achieve the purpose of disinfection.

Operation parameters and performance requirements

1) The input power of the generator should be:

AC 220V/380V 50Hz

2) The electrolysis current adjustment range should be greater than 10% of the rated electrolysis current.

3) The generator should ensure the rated output of the equipment under long-term working conditions, and the safe working time should be no less than 2h under working conditions exceeding 10% of the rated output.

4) The equipment should have temperature control and protection devices to ensure that the temperature of the electrolyte does not exceed 80℃ during the electrolysis process.

5) The performance indicators of the generator should comply with the provisions of Table 1.
